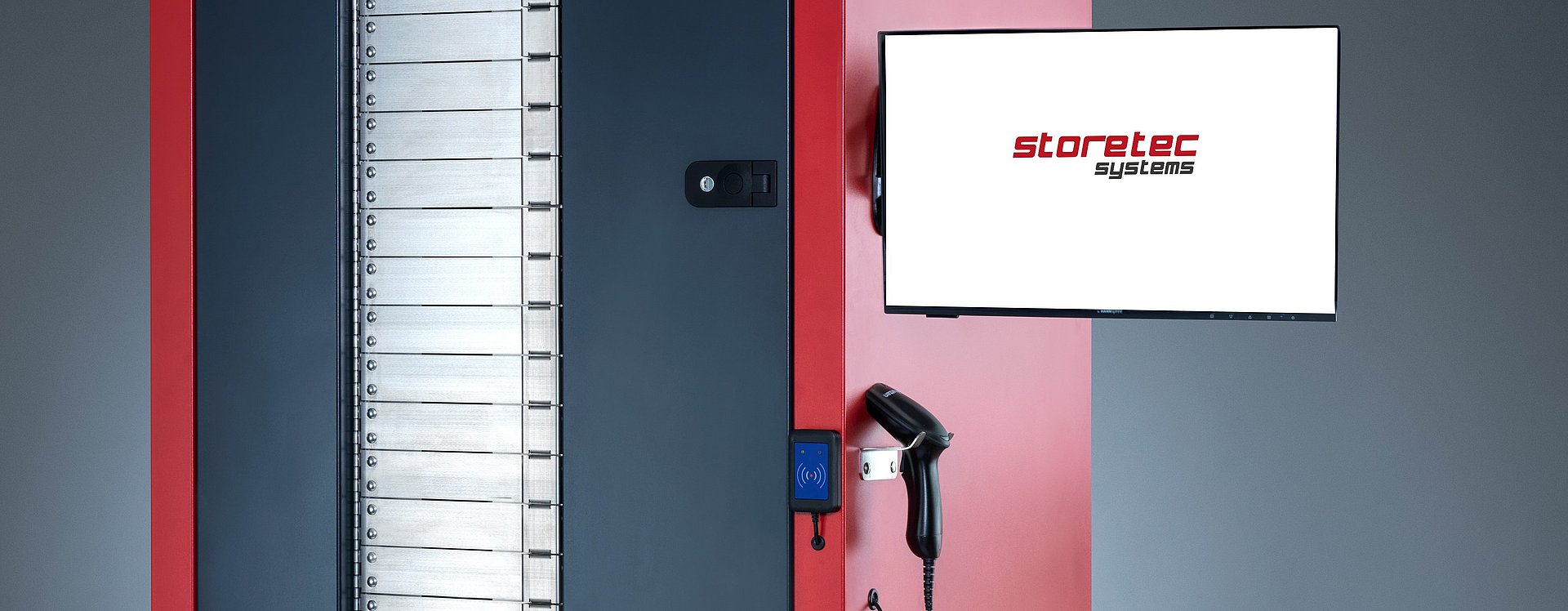

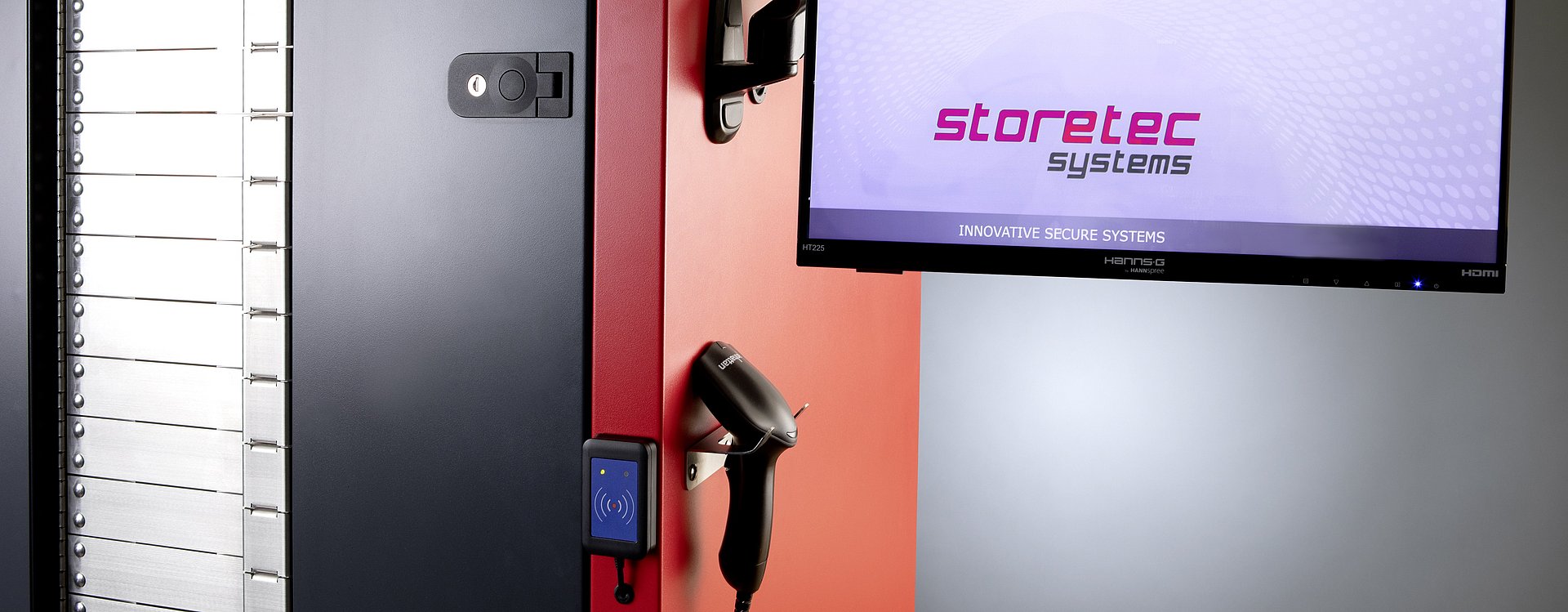

The standard model for saving time and money and offers 720 individual storage locations.

read moreread less
Summary of benefits


  • Real cost transparency and 100% access control through secured individual removal
  • Availability 24/7
  • Individual packing size dependent warehouse management for consumables and loan products
  • Allocation of the removal to cost centers, order or machine numbers
  • Automatic inventory analysis
  • Variable shelf occupation, can be changed individually
  • Automatic re-ordering when minimum inventories are reached (autonomous or after release)
  • Interfaces to all established ERP and CAx programs
  • Multiple supplier capability

The most important basic data

With 720 compartments (360 small and 360 large shelves) for individual removal (available as main system or expansion system without PC)
800 mm x 900 mm x 2,000 mm
approx. 260 kg
Power supply
230 V / 50 Hz
Schuko plug
Network connection
LAN socket / GSM module
Operating system
Windows 10
SQL-Server 2019
Maintenance-free Hardware

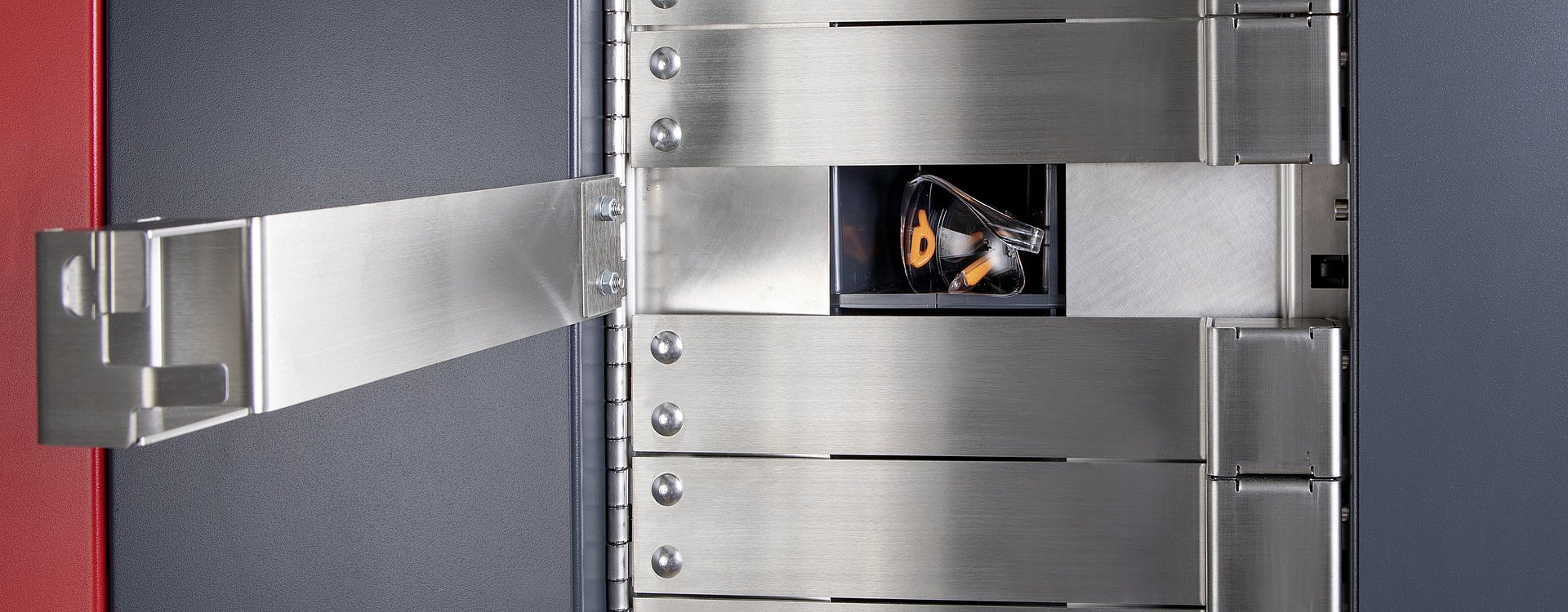

Emergency access
Lockable service doors on the front enable manual access in exceptional situations -> 100% availability

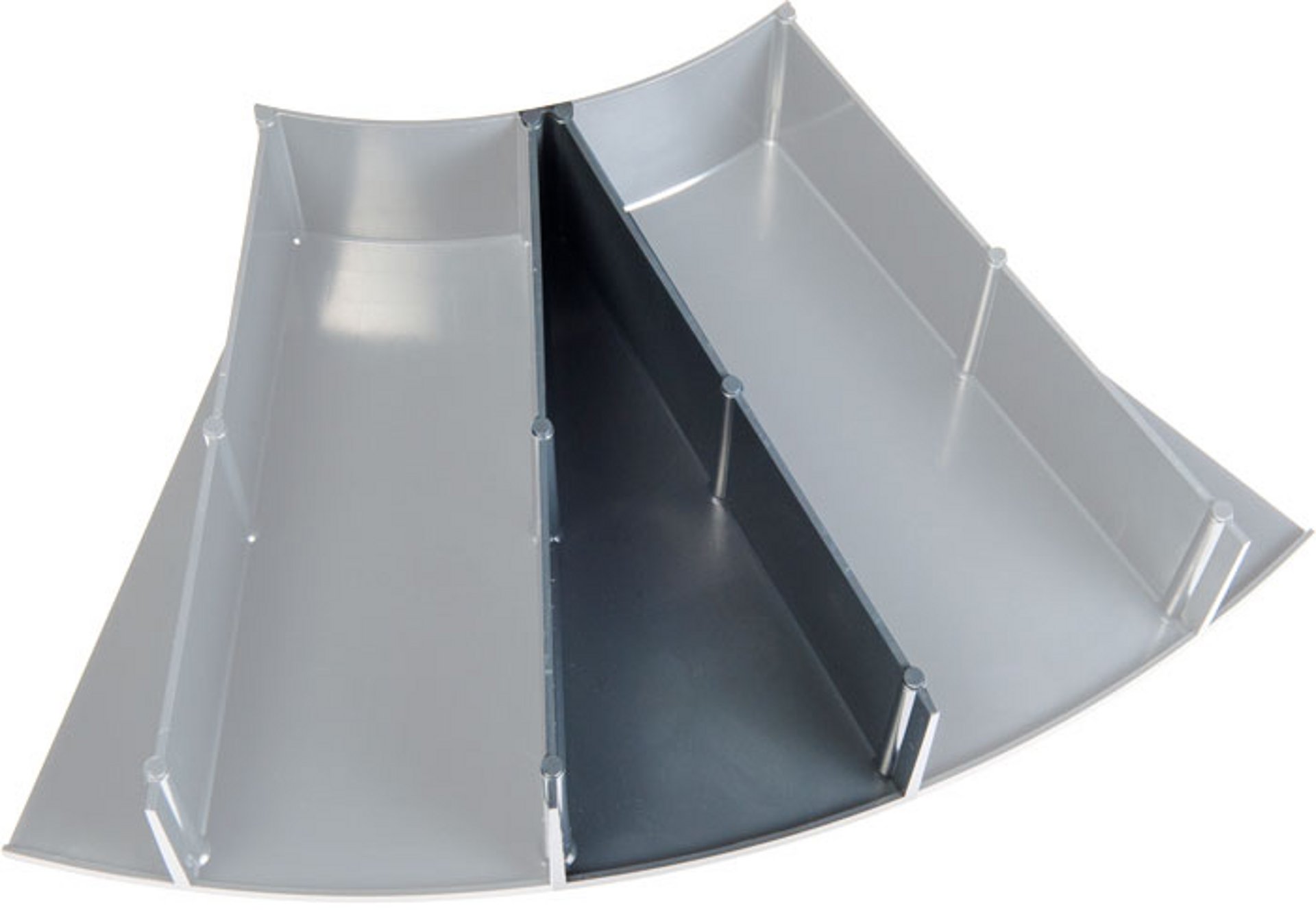

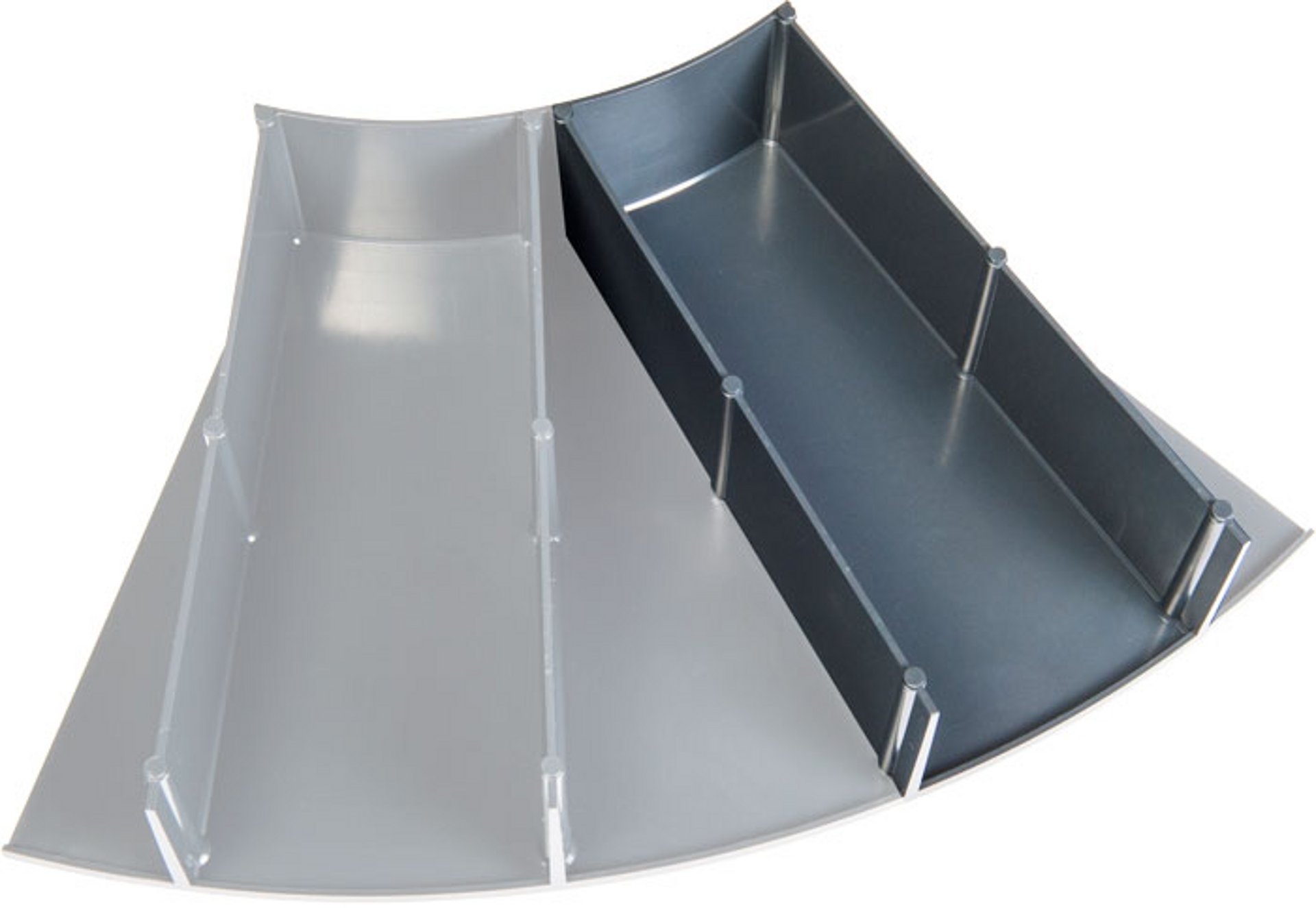

Shelf configuration


W (front) x W (rear) x H x D: 87 x 6 x 50 x 195 mm


W (front) x W (rear) x H x T: 87 x 68 x 50 x 195 mm
